Binary Burst Clock firmware update

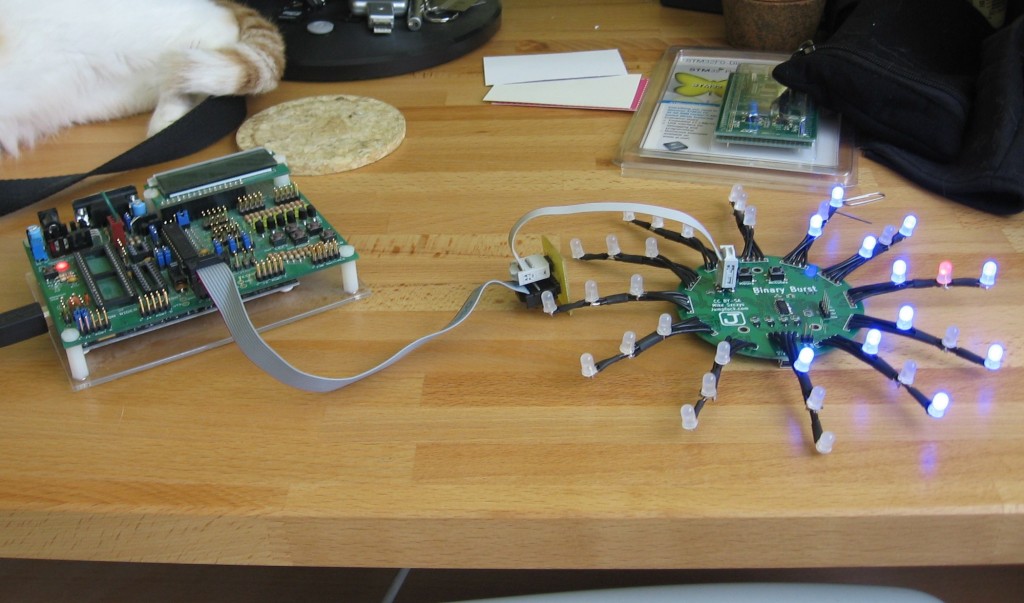

I pulled out the Binary Burst Clock and did some more work on the firmware. The big change is that I’m using a different library for the i2c communications. The one I started with had some issues and I didn’t want to work them out myself. Instead I grabbed Peter Fleury’s i2c library. He has two in the package, one is for chips with full TWI hardware (which is not the case with the ATtiny84 I’m using). The other is a software implementation written in assembly. It’s meant to be included in C projects and is super easy to work with.

I also implemented a test to see if the RTC oscillator is running. If not, a ‘first run’ function will start the oscillator and enable the backup battery. The buttons now work for setting the time, and I’ve migrated from a delay-based time keeping tick to one that uses TIMER1 (also used for debouncing the buttons).

At this point I would say the clock is fully functional. I still want to look into some things like how best to calibrate the oscillator for the RTC. Also of interest to me is a deeper menu system that would allow for things like intensity settings and alternate time displays.

The most up to date code is on the master branch of the repository.
